BF495 NPN Transistor 30V 30mA

Description

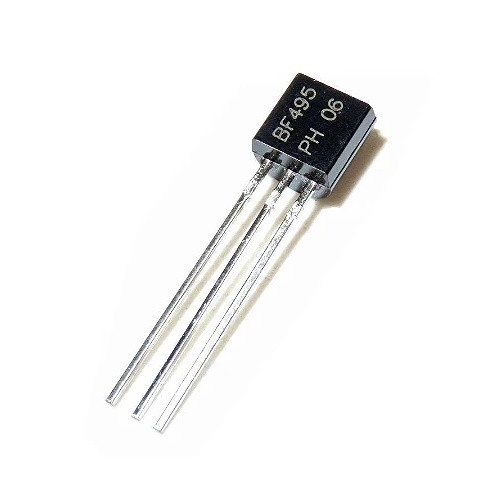

BF495 is an NPN transistor manufactured in TO-92 package. It is a medium frequency transistor designed to use in RF and radio applications. As shown in the above image the first pin of the transistor is base, second is emitter and third is collector. The maximum collector current of the transistor is 30mA which means the transistor can drive maximum load of 30mA, the maximum collector to emitter voltage is 20V which means it can drive load voltage of upto 20V. The total power dissipation of the transistor 300milliwatts, the transition frequency of the transistor is 120MHz and the DC current gain of the transistor is 35 to 125.

Features / Technical Specifications:

• Package Type: TO-92
• Transistor Type: NPN
• Max Collector Current(IC): 30mA
• Max Collector-Emitter Voltage (VCE): 20V
• Max Collector-Base Voltage (VCB): 30V
• Max Emitter-Base Voltage (VBE): 5V
• Max Collector Dissipation (Pc): 300 Milliwatt
• Max Transition Frequency (fT): 120 MHz
• Minimum & Maximum DC Current Gain (hFE): 35 to 125
• Max Storage, Operating & Junction temperature range: -65 to +150 Centigrade

Applications:

1. Audio Premamplifier Circuits
2. Audio Amplifier Circuits
3. FM Radios
4. FM Senders
5. Any general purposes switching and amplification

Package Includes

1pc x BF495 NPN Transistor 30V 30mA
