Description

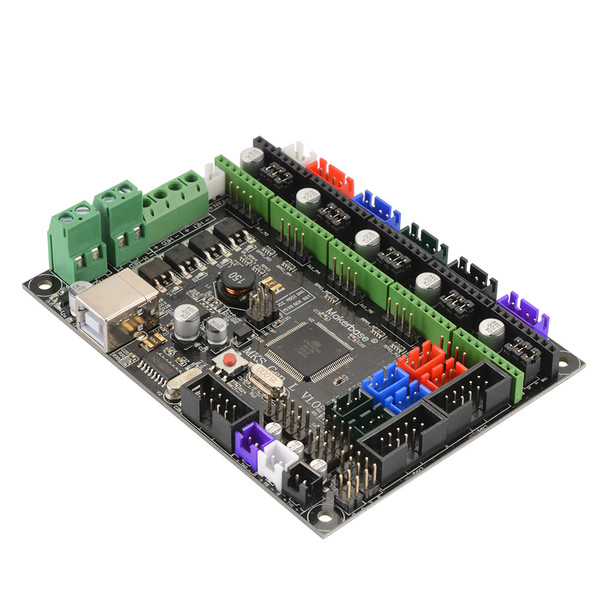

Aiming at the problems exist on the open sourced controller board such as Ramps 1.4, the developers in Makerbase specially optimize and develop a new product, MKS-Gen L, which provides more flexible choices for users.
Features:
| CATEGORY | SPECIFICATIONS |
|---|---|
| Board Type | Integrated Mega 2560 + RAMPS 1.4 |
| Design | All-in-one board (eliminates complex wiring and connectors) |
| Stepper Driver Support | A4988, DRV8825, TMC2100, LV8729 |
| External Driver Support | Yes (for high-current motors like NEMA 23/34) |
| Power Input | 12V – 24V DC |
| Power Management | Dedicated power chip for stable supply and reduced heating |
| MOSFET Quality | High-quality MOSFETs for better cooling and stability |
| Noise Reduction | Advanced filter circuit reduces interference and system crashes |
| USB Interface Chip | CH340 (easy driver installation) |
| Firmware Compatibility | Marlin firmware (same configuration as RAMPS 1.4) |
| Display Support | 2004 LCD, 12864 LCD, TFT28, TFT32 |
| Heated Bed Efficiency | Supports 24V input to reduce current and MOSFET heating |
| Axis Terminals | Color-coded terminals for X, Y, Z motors and endstops |
| Safety Feature | Prevents reverse connection of stepper drivers |
| Expandability | Compatible with RAMPS 1.4 accessories and modules |
Package Includes:
- 1x MKS-Gen L V1.0 board
- 1x 50cm USB cable
