Description
UT39C+ maximum display 3999, with AC and DC voltage, current, capacitance, frequency and temperature measurement, NCV function, suitable for electronic maintenance and manufacturing equipment maintenance
CAT III 600V safety level, withstands up to 1000V voltage, full-featured mis-test protection, safe and durable, ensuring the safety of personnel and instruments
Features
- Display count. 4,000
- Transistor hFE. √
- NCV. √
- Diode. √
- Frequency response. 40Hz~400Hz
- Range selection. Manual
- Continuity test . √
- Data hold . √
- Backlight. √
- Low battery indication. √
- Auto power off. √
- Power. 1.5V battery ×2
- Display. 2.2” x 1.4” (56.5mm x 36mm)
- Product color. Red and Grey
Specifications / UT39C+
- DC voltage (V). 400mV/4V/40V/400V/1000V
- AC voltage (V). 4V/40V/400V/750V
- DC current (A). 400uA/400mA/10A
- AC current (A). 4mA/400mA/10A
- Resistance (Ω). 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ
- Capacitance (F). 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF
- Frequency (Hz). 10Hz~1MHz
- Temperature. -40℃~1000℃ / -40℉~1832℉
Package Includes

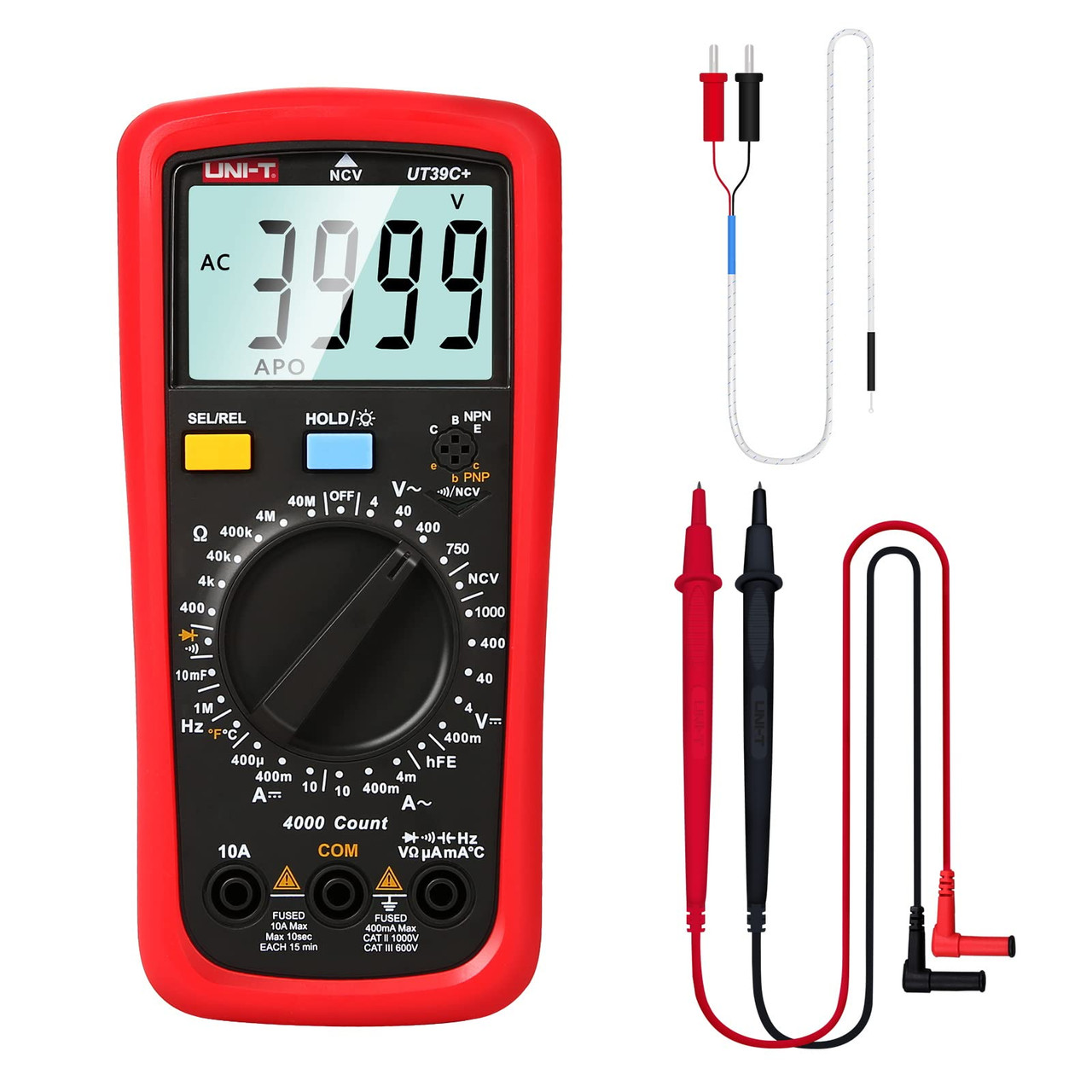

- 1 x UT39C+ multimeter
- 1 x test leads (pair)
- 1 x temperature probe (pair)
- 1 x paper manual
- 1 x e manual
- 1 x packing box
