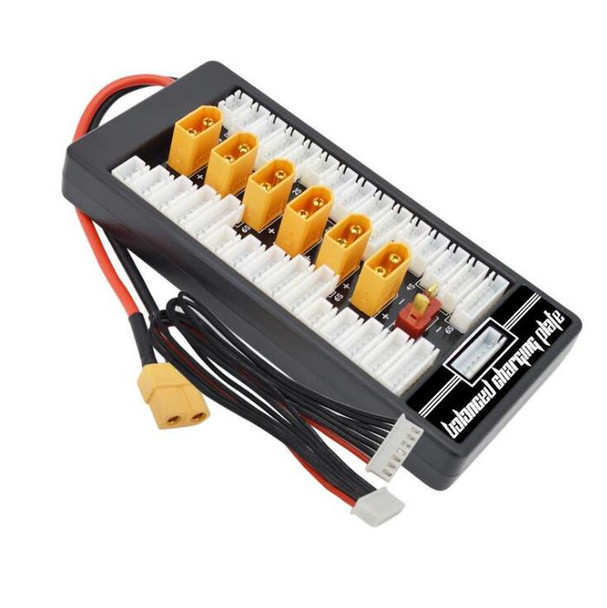

(XT-60) Parallel charging Board 2~6S

Description

Features :

1. Compatible for IMAX B6, Maxpro x612s,x6 plus UN-A6  charger.
2. Support 6 pairs 2S,6 pairs 3S,6 pairs 4S,6 pairs 5S,6 pairs 6S balance charge.
3. It can Protect the charging batteries when a short circuit happens.
4. Thicken PCB copper foil, allow security using 40A charging current.
5. Amass 7U gold plating plug plating.
6. Use safety fuse (50A) to protect the circuit.
7. Balance charging avoids overcharging of each Battery.
8. Using LED lights to display working states.
9. 20Z of thick copper foil sustainable resistance to flow 80A.
10. Accelerates battery charging, the same time more battery charges.
11. Add cascade port, can be the infinite cascading expansion of the charging port.

Package Includes :

1 x Parallel charging Board for 6 packs 2~6S (XT-60)
1 x Connecting Cable
