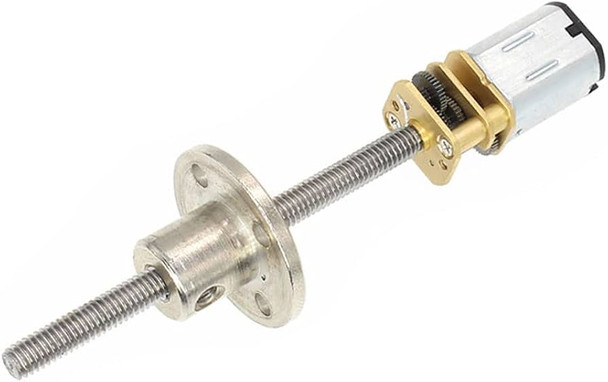

12GA-N20 500RPM 12V 55mm Screw thread reduction motor

6V no-load speed per minute: 30rpm 60RPM 100rpm 150rpm 200rpm 300rpm 500rpm
12V no-load speed per minute: 60rpm, 120rpm, 200rpm, 300rpm, 400rpm, 600rpm, 1000rpm
Note: There is a deviation of less than 10% in the speed measurement of each batch of goods during factory testing, which is a normal phenomenon!
Common torque unit: 1N. M=10KG. CM=0.1KG. M

Item Description:

• M4 screw gear DIY motor
• Motor Size：10*12*25mm (not containing the shaft)
• Shaft length：55.0MM (Effective thread length is about 52mm
• Voltage： 3-12v
• Weight： about 12g
• Mainly for electronic lock, robot, camera, intelligent linear motion instrument and meter.

There are fixed screw holes on both sides of the N20 motor shaft. Screw holes are adapted to M1.6 screws, and the two holes are 9mm apart.
