Description
1.Motor type: 2-phase 4-wire system
2.Driving voltage: 5V / 300mA (the higher the voltage, the greater the force and the greater the heating)
3.Screw length: 36mm
4.Slide stroke: 34mm
5. Motor diameter: 10mm
6.Screw rod diameter: 2mm
7.Optical axis diameter: 1.5mm
8.Step angle: 18 degrees
9.Phase resistance: 15.5 Ω
10.Overall size: 50 * 10 * 10mm
11.Red a + white a-black B + brown B-
12.Note that the stepper motor, directly connected to the power will not rotate, the need for stepper motor drive board and control board
Fixed hole distance: about 12mm
Package List:

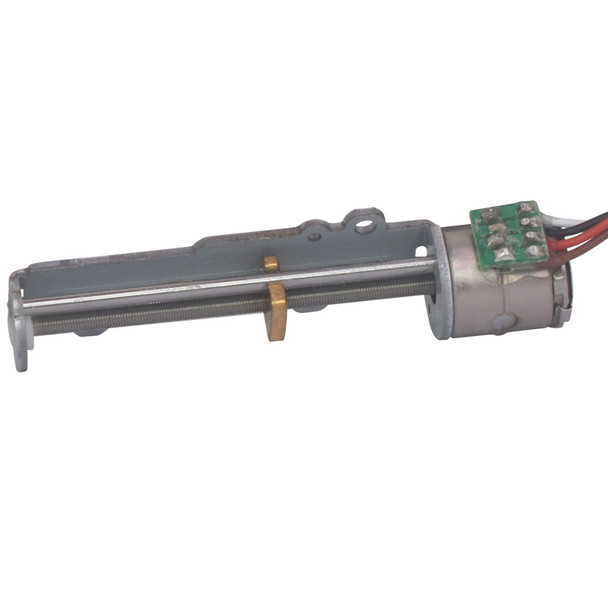

1 x Stepper Motor With Screw Rod And Nut Slider
