Description
Advantages:
- The input uses replaceable fuse to protect power supply and equipment;The whole electrolysis use patch, low resistance, high frequency capacitor to make the ripple down to the freezing point;
- Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging)
Note:
The output has error indicating lamp,it will light when the output voltage drift too serious, short circuit and other fault;Inductor use iron silicon aluminum, 0.8 double winding, generate less heat.
Parameters:
Input voltage: DC5-32V;
Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
Output current: 10A (MAX) ,long term within 8A
Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
Output ripple: 50mV (12V turn to 12V, 5A measured)
Short circuit protection:YES
Input reverse connection protection: No
Output prevent reverse connection protection: No
Operating temperature range: -45 ~ +85 centigrade
Package Includes

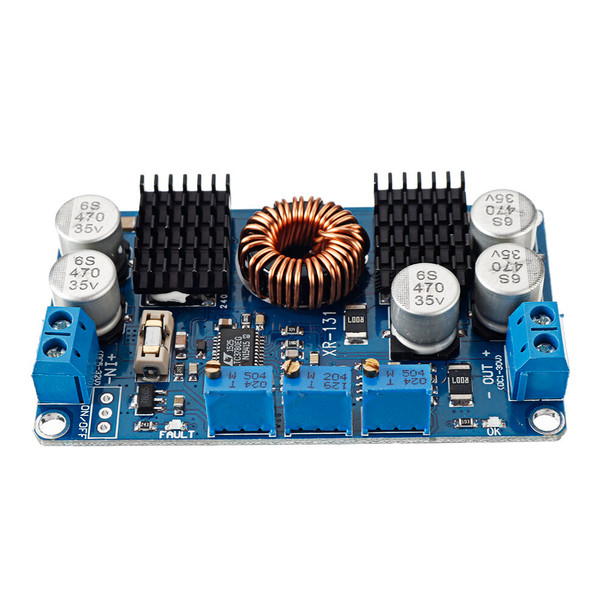

1 X LTC3780 Module
