Description
Specifications:
- Working voltage: DC 3.3V-5V
- Working current: try to choose more than 1A power supply
- Working temperature: – 10oC – +50oC
- Mounting aperture: M3 screws
- Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
- Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
- Small forward 25mm * 12mm * 12mm (length * width * height)
- Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, – for the negative power is ground)
- The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
Applications:
- A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
- smart car to avoid the cliff , anti- fall.
- smart car to avoid obstacles
Shipping List

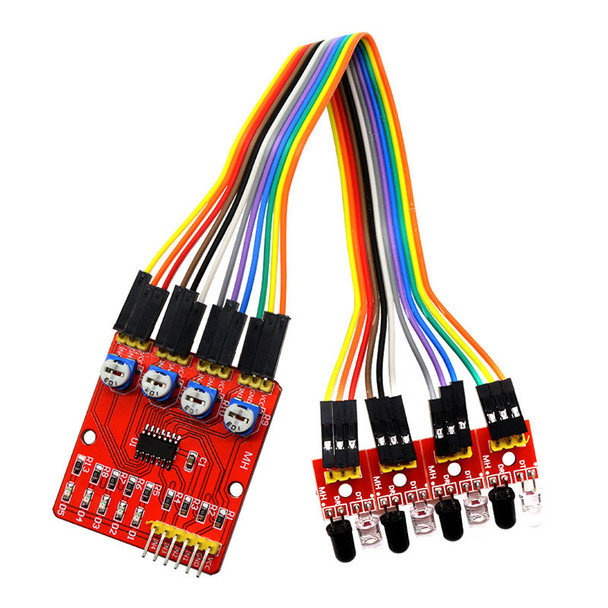

1 X Tracking Module (Hollow Board + Small Plate Forward)
12 X Male to Male Dupont Lines
