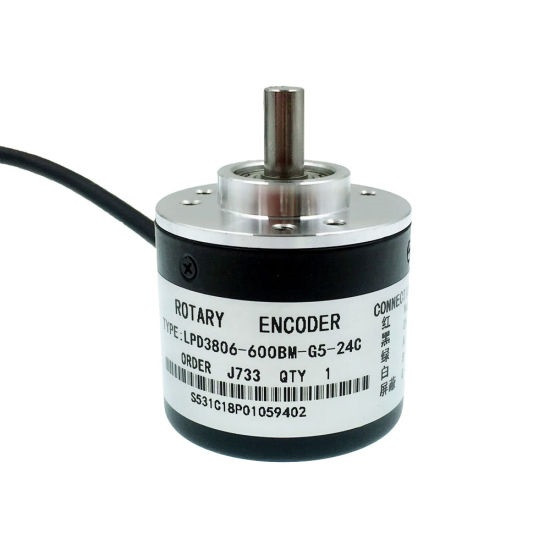

Name: LPD3806 600 Pulse Rotary Encoder
SKU: 1752
Availability: InStock

Description

Feature:

AB two-phase incremental optical rotary encoder 600 pulses, NPN open collector output .
Standard with 1.5 m cable
Performance: 600 pulses / rev.
Operating voltage: DC5-24V
Maximum mechanical speed: 5000 rev / min
The electrical response frequency: 20K / sec
Integrated speed: 2000 rev / min
Size: Encoder body size: φ38mm; shaft φ6 × 13mm; axis platform: High 5mm, φ20mm; fixing holes for: M3 screws
Three mounting holes on the circle 30, and the other three mounting holes on the 28 circle ; side qualify.
Length:38
Width: 38
Height: 51
Weight: 118
Drive Voltage: 5 – 24V DC

Characteristics:

600 Pulse per revolution
5000R/min Maximum revloution speed
20K/sec Electrical response frequency
2000rpm Intergrated speed

Draw Current: 30mA
Form Factor: 6x13mm Flat sided shaft
Mounting holes: M3
Operating Temperature: -40°C to 85°C (unconfirmed)
Number of Pieces: 1
Included Items: 1 400BM Rotary encoder

Output:
AB rectangular two-phase quadrature pulse output circuit output NPN open collector output type, this output type can and with internal pull-up resistor connected directly to the microcontroller or PLC, such as 51 single or Mitsubishi PLC (PLC’s input to switch connected to 0V should work), Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output when there is no pull-up resistor, there is no voltage output) to oscilloscope please plus two pull-up resistor AB two-phaseoutput;

How to connect:

Wire	Description
Green	A phase
White	B phase
Red	VCC
Black	GND

Uses:
For measuring the rotational speed of the object, angle, acceleration, and length measurements.
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machine, steel fixed length cutting controller, civil measured height human scale, college game with robots.

Package Includes

1 pc * LPD3806 600 Pulse Rotary Encoder
