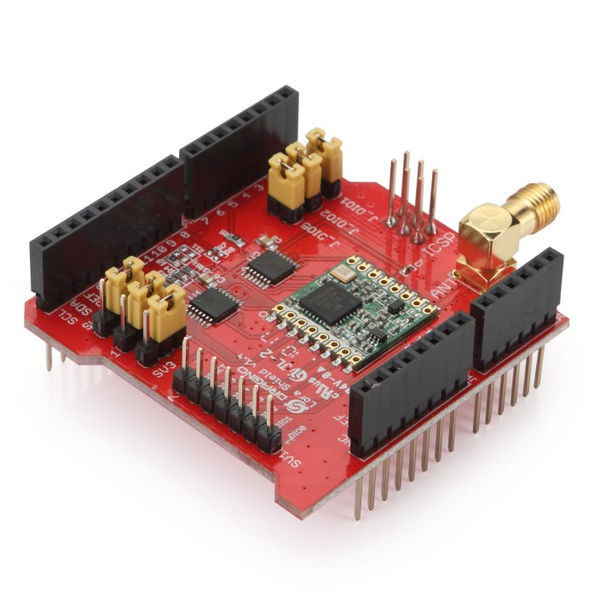

Dragino LoRa Shield – 868Mhz Module

Description

Features

• Compatible with 3.3 v O 5v/O Arduino Board
• Frequency band: 433/868MHZ (optional)
• Low power consumption
• Compatible with Arduino Leonardo One Mega due
• External antenna through I-Pex connector

Specification

• 168 dB maximum budget link
• + 20 dBm – 100 mW constant RF output.
• + 14 dBm of high efficiency PA
• Programmable little Rate up to 300 kbps
• High sensitivity:-148 dBm!
• Final front test bullet: IIP3 =-12.5 dBm!
• Excellent blocking immunity!
• Low RX current of 10.3 mA 200 nA retention record
• Fully integrated synthesizer with a resolution of 61Hz
• FSK, GFSK, MSK… the GMSK LoRaTM system and OOK modulation?
• Built-in little synchronizer for recovery clock
• Preamble to the detection of
• Dynamic Range of 127 dB RSSI?
• Automatic sense and CAD with ultra-fast AFC!
• 256-byte engine package with the Convention?
• Built-on temperature sensor and low battery indicator!
• Net weight: 50g
• Shipping weight: 150g

Package Includes

• 1 x LoRa Shield (support 868M frequency)
• 1 x 868~915Mhz Antenna
