Description

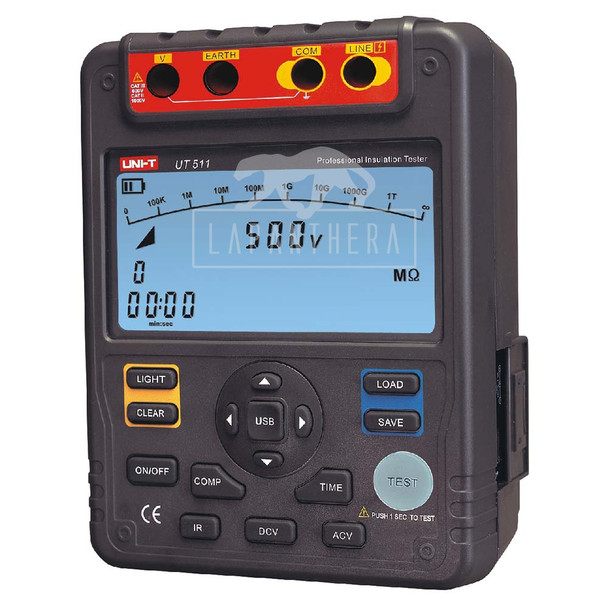

The UNI-T UT511 is a handheld insulation resistance tester built around a microprocessor system and intuitive readout design. It integrates a high-resolution LCD (9999-count) with an analog bar graph typically 30 segments to deliver clear, precise measurements in a range of testing environments.
Supporting test voltages of up to 1 kV DC (and 750 V AC), the UT511 tackles a wide range of measurement scenarios. It covers insulation resistance from low megaohm values up to around 10 GΩ, making it versatile for assessing cable or equipment integrity.
Constructed with a rugged body, this device includes essential safety certification (such as CAT III 600 V / CAT II 1000 V) to support field reliability. Powered by eight LR14 batteries, it remains compact and portable—ideal for routine diagnostics across industrial, residential, and commercial settings.
Features:
- Large 9999 display with 30-segment analog bar graph.
- PI/DAR measurements.
- Comparison, upper and lower limit functions.
- Continuous measurement mode.
- Auto power off.
- 18-group data storage.
- Backlight.
- Auto current discharge and high-voltage output alarm.
- Time measurement mode, auto measure within 15 minutes.
- Low battery and over range indications.
SPECIAL FUNCTIONS:
Auto Ranging
Short Circuis Current (< 2 mA)
Data Logging (18)
Sleep Mode
Polarization index (PI)
Dielectric Absorption (DAR)
Timer (around 30 minutes)
Compare
Battery Display
Display Backlight
Max. display: 9999 (123 x 58 mm)
Over Range and High Voltage Warning
Analogue Bar Graph
Applications:
- Electrical Installation and Wiring Verification.
- Preventive Maintenance of Electrical Equipment.
- High-Voltage Motor and Generator Winding Testing.
- Power Cable Insulation Integrity Testing.
- Transformer Insulation Condition Assessment.
- Switchgear and Circuit Breaker Testing.
Package Contents:
- 1x English operating manual
- 1x One-plug test lead to one alligator clip (pair)
- 1x Two-plug test lead to one alligator clip
- 8x LR14 (R14) 1.5 V batteries
- 1x Tool box (carrying case)
