Description
Descriptions:

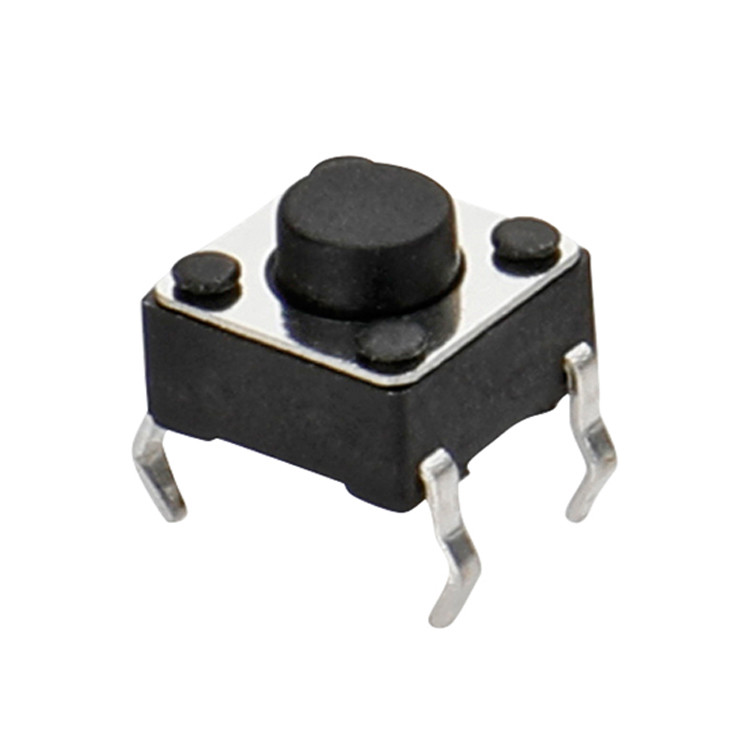

Feature momentary contact, 4 pins, round black push button, through hole mounting, 6 x 6 x 5mm size, etc.
Used in the fields of electronic products, household appliances and more.
High precision mechanism design offers acute operation and long service life.
Specifications:
Contact Type: Momentary Contact
Dimension: 6 x 6 x 5mm / 0.24″ x 0.24″ x 0.2″ (L*W*H)
Button Dia.: 3mm/ 0.12″
Pin Pitch: 5 x 6mm / 0.2″ x 0.24″ (L*W)
Pin Length: 5mm / 0.2″
Material: Plastic, Metal, Electric Parts
Color: Black, Silver Tone
Current Rating: 50mA
Voltage Rating: 12VDC
Insulating Resistance: >100M ohm 250V DC
Withstand Voltage: 250V AC in 1 minute
Contact Resistance: <100m ohm
Soldering Temperature: 240 deg C Max in 3 seconds
Mechanical Life: >100,000 Cycles
Electrical Life: >100,000 Cycles
Ambient Temperature: -25 deg C ~ +70 deg C
Ambient Humidity: <85 %RH
Operating Force: 180 +/- 50 g
Package Includes
1pc x Tactile Tact PushButton 6x6x5mm
